PVC Railing Systems
PVC & Vinyl Railing Systems
Quick Specs & Stock Availability Matrix
- Standard Section Lengths: Pre-packaged vinyl railing kits available in 4 ft, 6 ft, 8 ft, and 10 ft structural spans.
- Profile Heights: 36-inch residential sections and heavy-duty 42-inch commercial heights.
- Structural Core: High-tensile, continuous reinforced aluminum core running through top and bottom rails to meet and exceed local building codes.
- Picket & Trim Options: Choose from 1.5-inch Colonial or 1.75-inch fluted pickets; standard or New England post trim styles.
- What's Included: Every kit contains heavy-duty mounting brackets, pickets/balusters, top/bottom rails, and color-matched snap-on bolt covers.
Why Structural PVC Beats Traditional Timber
- Zero Upkeep: Completely impervious to rot, splintering, moisture, and insect degradation; no sanding or painting required.
- Extreme Weather Resistance: Manufactured with advanced multi-layered extrusion technology to ensure a fade- and scratch-resistant white vinyl surface that never peels.
- Maximum Structural Load: Engineered to maintain an exceptional strength-to-weight ratio, preventing sagging or bowing under heavy lateral pressure.
- Fast Field Deployment: Available in standard individual components or comprehensive, ready-to-assemble PVC stair railing kit configurations to slash installation time.
On-Site Delivery: BuyRailings ships heavy-duty, UV-resistant kits directly to your job site or residential project.

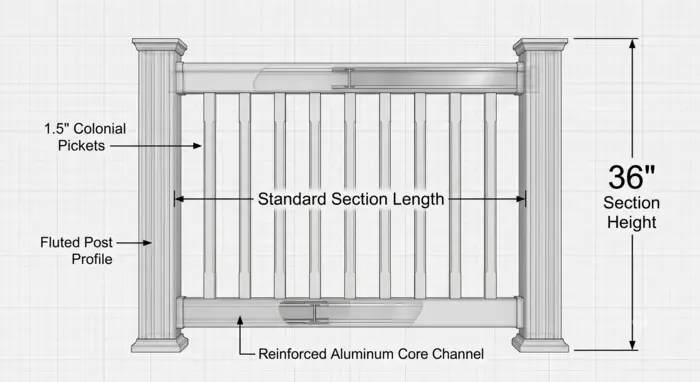

Technical Specifications: Vinyl Railing Kits & Sizing Chart
To satisfy structural building codes and minimize on-site cutting waste, select the exact structural length, profile height, and picket style required for your layout.
Standard PVC & Vinyl Railing Configuration Matrix
| Specification Category | Available Architectural Options | Code Compliance & Engineering Notes |
| System Lengths | 4 ft - 6 ft- 8ft - 10ft Sections | 8-ft and 10-ft spans require structural supports to limit deflection. |
| System Heights | 36 inch (Residential) - 42 inch (Commercial) | 36-inch setups satisfy standard residential codes; 42-inch setups match OSHA requirements. |
| Picket/Baluster Profiles | 1.5-inch Colonial Picket - 1.75-inch Fluted Picket | Spaced strictly below the 4-inch rule to meet safety standards. |
| Post Trim Designs | Standard Square Post - New England Trim Post | All heavy-duty posts feature clean, internal structural fluting. |
Heavy-Duty Engineering & Structural Aluminum Core Reinforcement
The primary difference between retail-grade plastic brackets and commercial PVC railing systems lies in their internal reinforcement.
Standard PVC handrails for outdoor steps or multi-level decks can expand and contract under intense summer heat. To completely eliminate warping, sagging, or bracket failure, our premium vinyl railing systems feature a heavy-gauge, continuous reinforced aluminum core inside the top and bottom rails.
This co-extruded structural skeleton gives the system the structural stiffness of metal with the low-maintenance cleaning benefits of vinyl, allowing it to meet and exceed existing building codes for lateral loads.
Frequently Asked Questions (FAQ)
What is the difference between PVC and Vinyl railing systems?
In the context of architectural railing hardware, "Vinyl" and "PVC" (Polyvinyl Chloride) refer to the exact same base polymer. However, high-quality PVPVC railing systems contain added UV inhibitors and impact modifiers that prevent the plastic from becoming brittle or yellowing when exposed to continuous outdoor exposure.
Do vinyl railing kits come with all mounting hardware?
Yes. Every standard vinyl stair railing kit and level section from BuyRailings includes the top and bottom rails, your chosen picket infills, heavy-duty mounting brackets, and color-matched snap-on bolt covers to ensure a completely clean, fastener-free finish.
How do you anchor a vinyl porch post to a surface?
To anchor a post securely, a structural post-mount tower (steel or aluminum) is surface-mounted directly into the concrete deck or wood framing with heavy-duty masonry anchors or lag bolts. The hollow, fluted PVC pipe railing sleeve is then slid over the internal tower, providing a robust post anchor that resists high lateral loads.
Complete Your Project with BuyRailings
Building a reliable, rot-free outdoor deck or commercial entrance requires premium hardware that won't fatigue under seasonal changes. BuyRailings provides code-compliant PVC railing systems designed for rapid on-site assembly without specialized welding certifications or heavy machinery.
Select Your Project Configuration:
- Complete System Layouts: Browse our comprehensive, ready-to-ship Vinyl Railing Kits for level decks and porches.
- Staircase Adaptations: Source specialized angle-adjustable brackets and hardware inside our PVC Stair Railing Components catalog.
- Custom Commercial Drafting: Managing a large-scale housing or multi-family project? Submit your dimensions directly to our engineering team on our Contact Page for a bulk quote.
